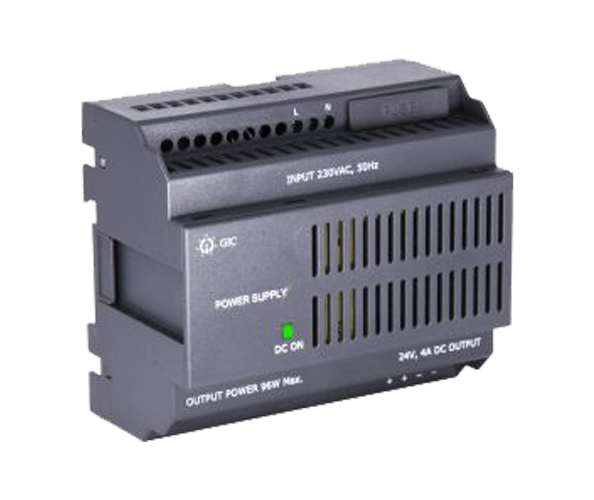

Cat. No.					24AS244D6D
Parameters
Supply Voltage					230 VAC
Supply Variation					-30% to +15%
Frequency					50 Hz
Power Consumption @ No Load					0.5W Max. @ 230 VAC
AC Current					0.8A / 230 VAC
Efficiency					> 85%
Inrush Current					Cold Start 50A / 230 VAC
Leakage Current
	Voltage				24 VDC
	Rated Current				4A
	Current Range				0-4A
	Rated Power				96W
	Output Voltage Accuracy				± 1%
Output	Line Regulation				1%
	Load Regulation				1%
	Ripple & Noise				150 mV (P-P)
	Over Voltage Protection				26V~33V
	Over Load Capacity				168% of rated output (Max.10s)
Continuous Open Circuit					Normal Operation
Over Current Protection					Voltage Drop
Continuous Short Circuit Protection					Auto Recovery after fault condition is removed
Start Up Time					3s Max. (At minimum input voltage and rated load)
Hold Up Time					30ms Min. (At minimum input voltage and rated load)
Withstand Voltage					Input to Output 3 KV AC for 1 Minute, 5 mA
LED Indications					Green LED: Output ON
Operating Temperature					-10°C to + 55°C
Storage Temperature					-25°C to + 85°C
Enclosure					Flame Retardant UL94-V0
Dimension (W x H x D) (in mm)					108X90X58
Weight (unpacked) Approx.					350 g
Mounting					Base / DIN Rail
Certification

EMI / EMC
Harmonic Current Emissions	IEC 61000-3-2
ESD	IEC 61000-4-2
Radiated Susceptibility	IEC 61000-4-3
Electrical Fast Transients	IEC 61000-4-4
Surges	IEC 61000-4-5
Conducted Susceptibility	IEC 61000-4-6
Voltage Dips & Interruptions (AC)	IEC 61000-4-11
Conducted Emission	CISPR 14-1
Radiated Emission	CISPR 14-1

---

---

---
