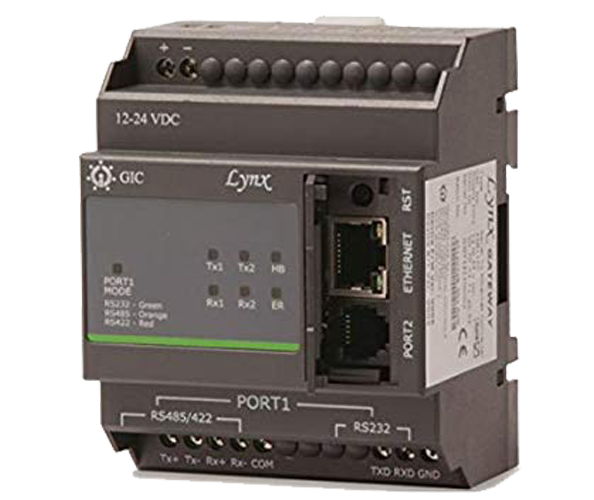

Cat. No.					25A11A0
Parameters
Supply Voltage					12 - 24 VDC
Supply Variation					-10% to +25%
Power Consumption (Max.)					2 W
Protocol Conversion					N.A
Operation Mode					Raw, Telnet
Configuration Management					HTTP Web Server and Application software
	Number of Serial Ports				2
	Serial Interface				Port1:  Screw terminals for RS232, RS422 and RS485 interface,
					Port2:  RJ11 for RS232 Interface
					RS232 : RXD, TXD, GND
	Signals				RS422 :TX+, TX-, RX+, RX-, GND
Serial Interface					RS485 : TX+ (D+), TX- (D-), GND
	Serial Interface Selection				For Port1: Mode selection using RST switch with Mode LED indication
					Baud Rate : 300bps to 115.2Kbps
	Serial Communication				Data Bits : 7,8 ; Flow Control : None
					Parity : Odd, Even, None
	Parameters
					Stop Bits : 1,2
	Fail safe resistor				4K7 Resistor Pull up ( TX+) & Pull Down (TX-) on BUS
	Terminating Resistor				Connect externally if required
	Isolation				Isolation 2 KVrms
	Port				RJ45, Ethernet 10/100 Mbps
LAN	LAN Isolation				1.5KVrms magnetic Isolation
					Standard Protocols used : HTTP, DHCP, AUTOIP
Interface
	Network Protocols Supported				UPnP, TCP, UDP, IP, ARP, ICMP,
					Protocols used for firmware updating : BOOTP, TFTP
					Protocols used for firmware updating : BOOTP, TFTP
	Isolation				1.5KVrms magnetic Isolation
Feature					Mapping and Background Processing Data Block (BPD)
Configuration Software					Windows Based Software to Configure Ports as well as
Reset					Front Panel recessed , Loads Default Factory Settings & Serial Mode selection
LED Indications					Serial TX and RX, LAN: LINK and Activity, Power ON, Error, Mode Selection Indication LED
Operating Temperature					0°C to + 55°C
Enclosure					Flame Retardant UL94-V0
Dimension (W x H x D) (in mm)					72X90X58
Weight (unpacked)					185 g
Mounting					Base / DIN Rail
Certification					RoHS Compliant

---

---

---
