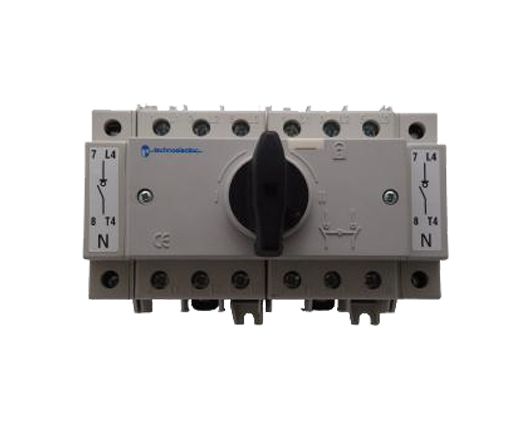

• SD MANUAL CHANGE-OVER SWITCHES 36A 3P
Item Name: SD MANUAL CHANGE-OVER SWITCHES 36A 3P
SKU 1: 192053
SKU 2: 0
  • Previous Product

Rated insulation voltage Ui (V) 800
Impulse withstand voltage Uimp (kV) 8
Rated thermal current at 40°C Ith/Ithe (A) 63
Rated operational current
AC-21A 415V (A) 63
500V (A) 63
690V (A) 63
AC-22A 415V (A) 63
500V (A) 63
690V (A) 40
AC-23A 415V (A) 63
500V (A) 63
690V (A) 32
Rated making capacity at 415V AC23 (A) 630
Rted breaking capacity at 415V AC23 (A) 504
Rated operational power AC23 415V (kW) 29
500V (kW) 35
690V (kW) 24
Short-circuit withstand current 1 sec (400V) (kA) 1,5
Rated fuse short circuit current
Back up fuse gG (A) 63
R.M.S. value (kA) 50
Peak value (kA) 8
Mechanical endurance n. 30000
Electrical endurance n. 3000
Power loss per pole W 0,8
Cable section mmq *16-50
Max terminal torque Nm 2,5
Operation torque Nm 1,6
Auxiliary contacts AC 15/415V A 3
Net weight 3 poles Kg. 0,25
Net weight 4 poles Kg. 0,32
Net weight 3 poles Kg. 0,55
