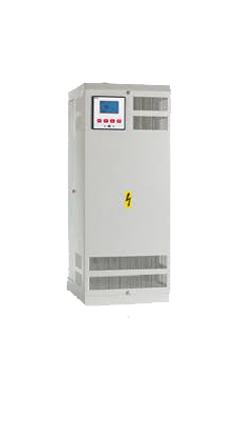

Range: ALPIMATIC
Type: Standard
Nominal power:  300 kVAr
Steps: (25 + 50)  + 3 x 75 kVAr
Nominal voltage: 400 V - 50 Hz -Tri
Max permissible voltage:  470 V (capacitor)
Insulation class: 6 / 25 kV (capacitor)
Harmonic level:  THDU < 2% & THDI < 5%SH/ST ≤ 15%
Loss factor:  2  W / kVAr
Temperature class: -10°C  / +45°C
Average over 24H: +40°C
Annual average: +35°C
Weight:  200 kg
Dimensions (W x D x H mm):  600 x 500 x 1400
Type:  Indoor
Storage:  -30°C / +60°C
Environment: Dry,Dust-free,Non-corrosive,Vibration-free
Standard:  IEC 61439

---

---

---
