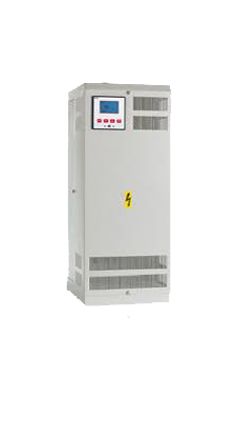

Range: ALPIMATIC
Type: Standard
Nominal power:  10 kVAr
Steps: (2 x 2.5) + 5 kVAr
Nominal voltage: 400 V - 50 Hz - Tri
Max permissible voltage:  470 V (capacitor)
Insulation class: 6 / 25 kV (capacitor)
Harmonic level:  THDU < 2% & THDI < 5% SH/ST ≤ 15% Loss factor:  2  W / kVAr Temperature class: -10°C  / +45°C
Average over 24H : +40°C
Annual average : +35°C
Weight:  35 kg
Dimensions (W x D x H mm):  260 x 320 x 770 mm
Type:  Indoor
Storage:  -30°C / +60°C
Environment: Dry,Dust-free,Non-corrosive,Vibration-free
Standard:  IEC 61439-1 and 2

---

---

---
