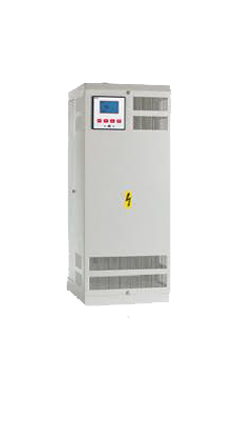

Range: ALPIMATIC
Type: Standard
Nominal power:  175 kVAr
Steps: 25 + (25 + 50) + 75 kVAr
Nominal voltage:400 V - 50 Hz -Max
permissible voltage:  470 V (capacitorInsulation)
class: 6 / 25 kV (capacitor)
Harmonic level:  THDU < 2% & THDI < 5%SH/ST ≤ 15%
Loss factor:  2  W / kVAr
Temperature class: -10°C  / +45°C
Average over 24H:+40°C
Annual average:+35°C
Weight:  140 kg
Dimensions (W x D x H mm):  600 x 500 x 1400
Type:  Indoor
Storage:  -30°C / +60°C
Environment: Dry,Dust-free,Non-corrosive,Vibration-free
Standard:  IEC 6143

---

---

---
