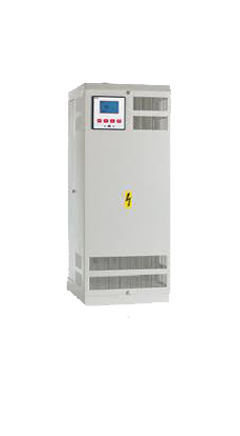

Range: ALPIMATIC
Type: H
Nominal power:  112.5 kVAr
Steps: (12.5 + 25) + (25 + 50)
Nominal voltage: 400 V - 50 Hz - Tri
Max permissible voltage:  520 V (capacitor)
Insulation class: 6 / 25 kV (capacitor)
Harmonic level:  2% < THDU < 3% &15% < SH/ST ≤ 25%
Loss factor:  2  W / kVAr
Temperature class: -10°C  / +45°C
 Average over 24H : +40°C
Annual average : +35°C
Weight:  50 kg
Dimensions (W x D x H mm): 520 x 320 x 770 mm
Type:  Indoor
Storage:  -30°C / +60°C
Environment: Dry,Dust-free,Non-corrosive,Vibration-free
Standard:  IEC 61439-1 and 2

---

---

---
