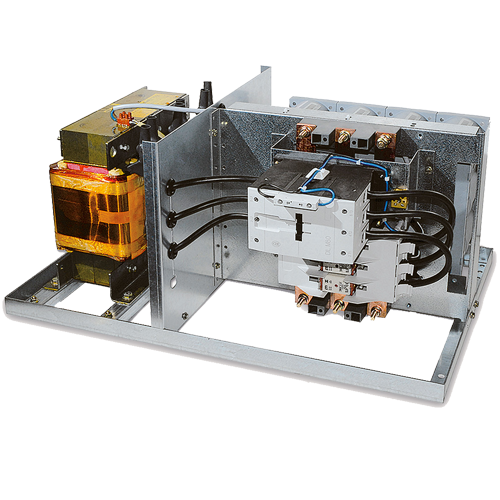

Range:  ALPIMATIC RACK
Type:  SAH, Reinforced Class
Nominal power:  40 kVAr
Nominal voltage: 400 V - 50 Hz - Tri
Max permissible voltage:  520 V (capacitor)
Harmonic level:  4% < THDU < 6% & 20% < THDI < 40% 35% < SH/ST ≤ 50%
Loss factor:  6 W / kVAr
Temperature class:  -10°C / +45°C
Average over 24H: +40°C
Annual average: +35°C
Weight:  52 kg
Dimensions (W x D x H mm) : 700 x 458 x 325
Type :  Indoor
Storage :  -30°C / +60°C
Environment : Dry,Dust-free,Non-corrosive,Vibration-free
Standard:  IEC 61439-1 and 2

---

---

---
