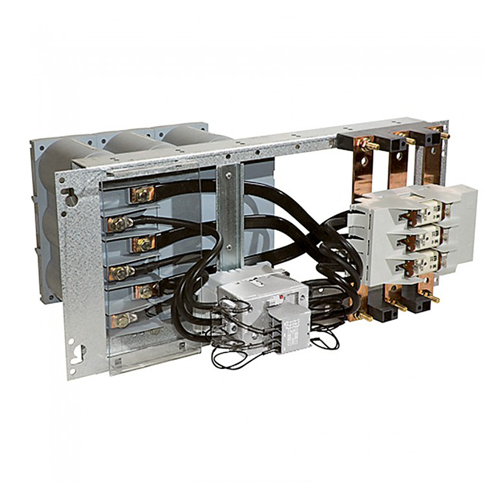

Range:  ALPIMATIC RACK
Type:  H
Nominal power:  25 kVAr
Nominal voltage: 400 V - 50 Hz - Tri
Max permissible voltage:  520 V (condensateur)
Harmonic level:  2% < THDU < 3% & 5% < THDI < 10% 15% < SH/ST ≤ 25%
Loss factor:  2 W / kVAr
Temperature class:  -10°C / +45°C
Average over 24H: +40°C
Annual average: +35°C
Weight:  10 kg
Dimensions (W x D x H mm) : 580 x 400 x 248
Type:  Indoor
Storage :  -30°C / +60°C
Environment : Dry Dust-free Non-corrosive Vibration-free Standard:  IEC 61439-1 and 2

---

---

---
