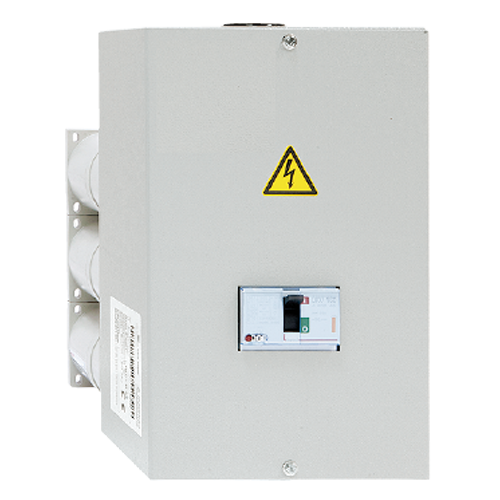

Range: ALPIBLOC
Type:  H
Nominal power:  125 kVAr
Nominal voltage: 400 V - 50 Hz - Tri
Max permissible voltage:  520 V (capacitors)
Harmonic level:  2% < THDU < 3% et 5% < THDI < 10% 15% < SH/ST ≤ 25%
Insulation class: 6 kV / 25 kV
Loss factor:  2 W / kVAr
Temperature class:  -10°C / +45°C
Average over 24H: +40°C
Annual average: +35°C
Weight:  85 kg
Dimensions (W x D x H mm) : 540 x 230 x 380
Type:  Indoor
Storage :  -30°C / +60°C
Environment : Dry,Dust-free,Non-corrosive,Vibration-free
Standard:  IEC 60831-1 and 2

---

---

---
